L Legs Gantry Crane

L legs gantry crane is a single girder gantry crane with an L shape supporting legs. It is a general-purpose gantry crane for outdoor plant material handling with a capacity of 2t to 50t.


Introduction to L Legs Gantry Crane:

L legs gantry crane is a single girder gantry crane used for handling materials outdoors, or at a warehouse, stock ground, railway station, seaport cargo area, etc. The crane is composed of a gantry, L shape support leg, crane beam, crane traveling, hoisting, electric control system.

Two forms of power supply: cable car and cable reel. And the specifications, installation, and location of the cable reel are based on the specific situation.

gantry crane L support leg

Structure of L Legs Gantry Crane:

The frame adopts a box-type welding mechanism, the L-type single leg is a welding structure in order to increase the workspace, and it is convenient for transportation, installation, and maintenance. The traveling mechanism adopts a separate drive. This gantry cane can be equipped with a closed cabin, and there are cabs with heat preservation for selection.

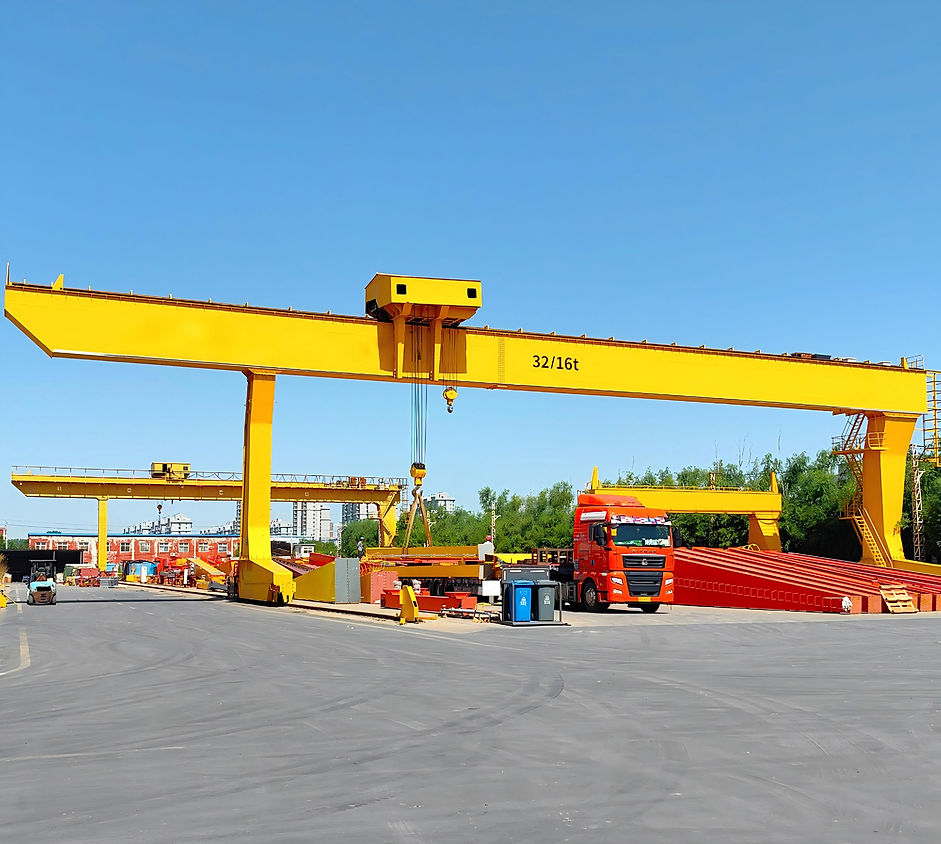

L Gantry crane

Features of L Legs Gantry Crane:

1. Box type girder, Simple and compact structure, steady performance, and easy for installation and maintenance;
2. Overload, low voltage protection.
4. Pendant control, remote control, or operator’s cabin.
5. Preventing hook clashing the top, set shields, and barriers.
6. Circuit self-test protection device, travel limit to protect the current lacking of any phase.
7. Outdoor cranes are equipped with a lifting mechanism, electrical control box, and rainproof devices.
8. Anti-collision, sound light alarm. Equipped with rail clamp.
9. Good operation vision of cab, equipped with the internal linkage control console, flexible and comfortable operation, install fan, heater, cooler, air-conditioner and intercom according to the customers' requirements;

L leg gantry crane

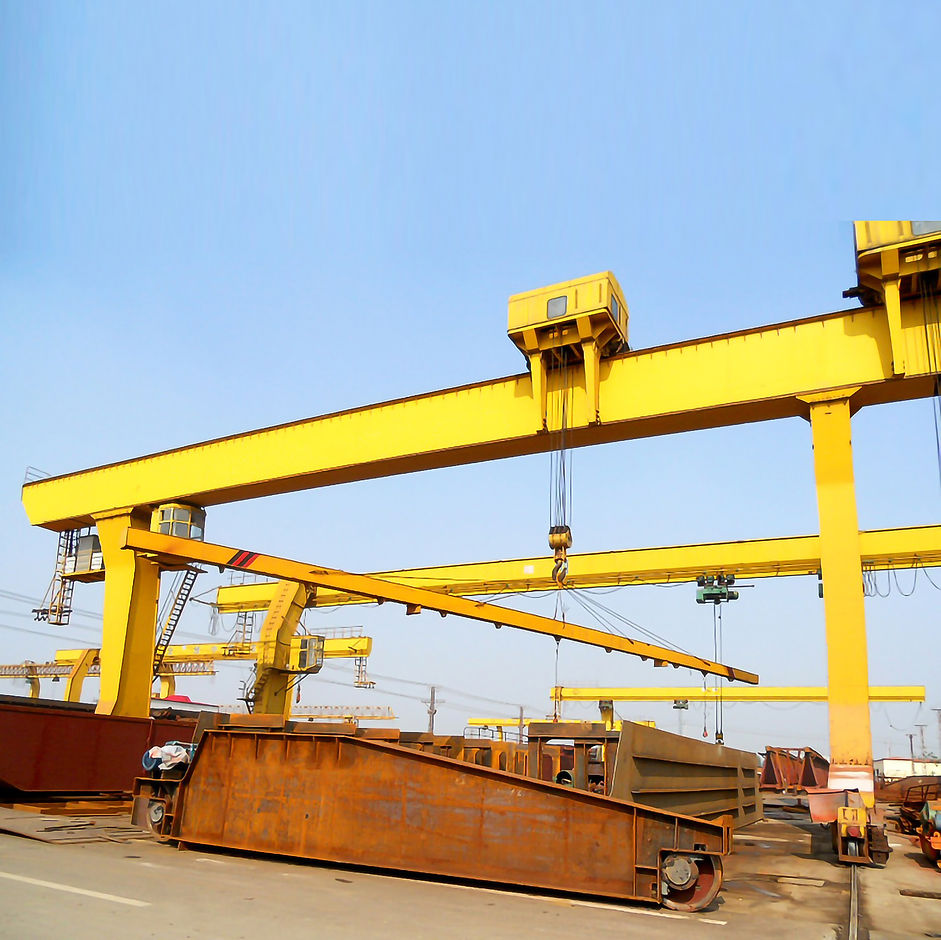

L leg single girder gantry crane
L type gantry crane
